Sale!

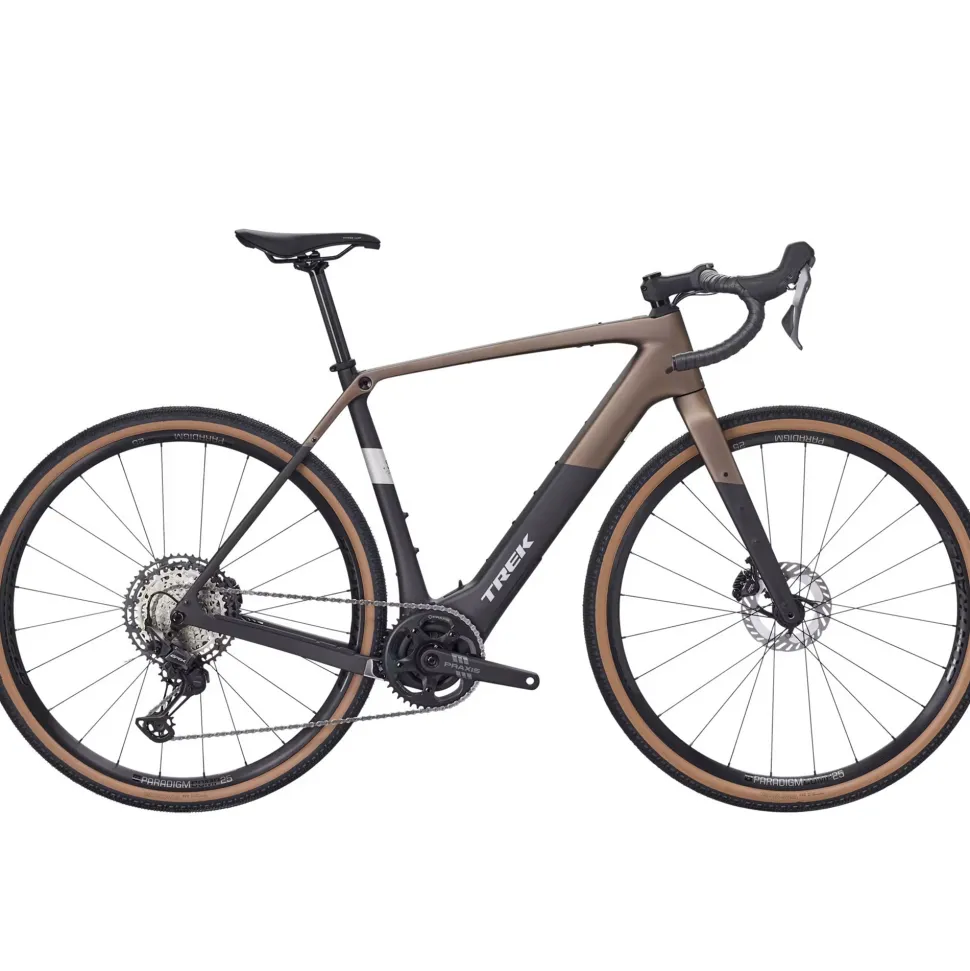

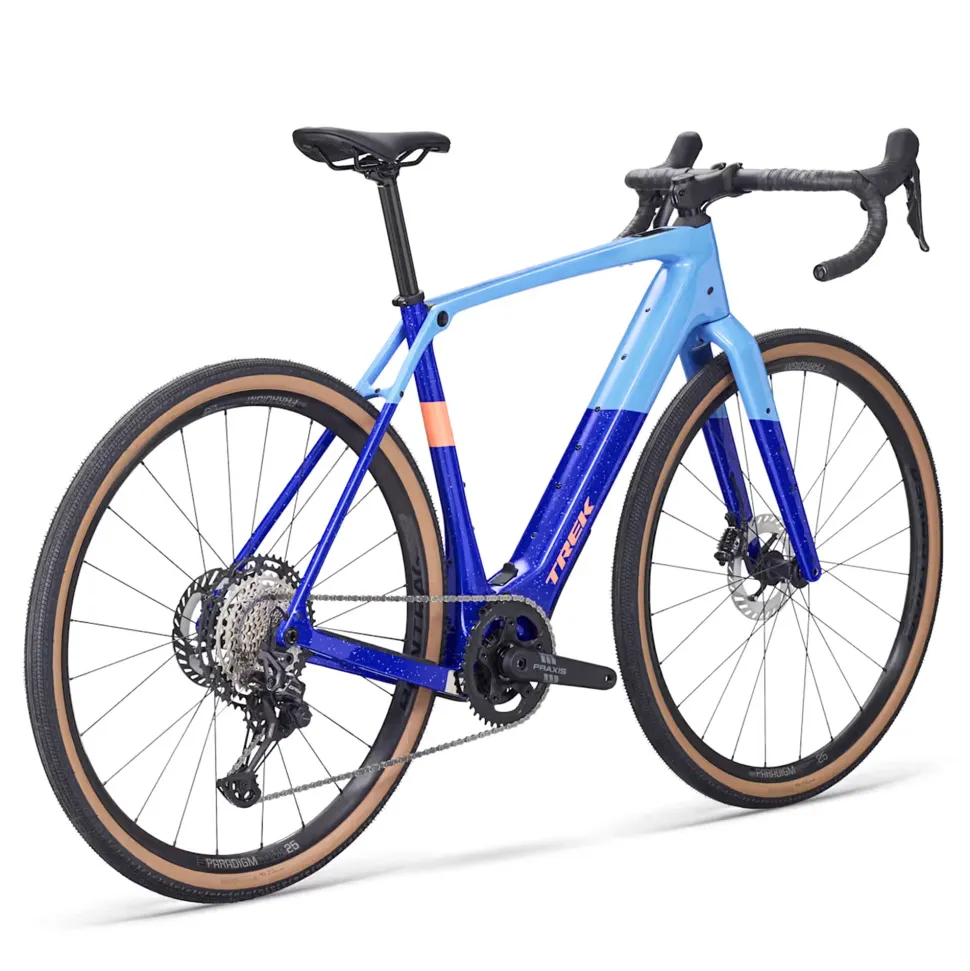

Checkpoint+ SL 5 GRX Electric Gravel Bike

Checkpoint+ SL 5 GRX Electric Gravel Bike

Original price was: 4 609,92 £.Current price is: 105,74 £.

Colour

Clear

TrekCheckpoint+ SL 5 GRX Electric Gravel Bike

The Trek Checkpoint+ SL 5 GRX Electric Gravel Bike is a carbon e-gravel bike designed for big adventures and challenging terrain. Powered by the TQ HPR60 motor, it provides a smooth, natural-feeling boost to help you conquer tough climbs and cover more ground with ease. A 360 Wh battery delivers lasting support for long-distance rides.

Trek’s smooth performance

Built around a lightweight OCLV Carbon frame with endurance geometry, it offers stable, comfortable handling across varied surfaces. Equipped with a 12-speed Shimano GRX 1x drivetrain, it delivers reliable shifting and confident performance on gravel, dirt and beyond. Ideal for riders looking to explore further with electric assist.

Technical Specification

Frame	500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142×12 mm chamfered thru axle

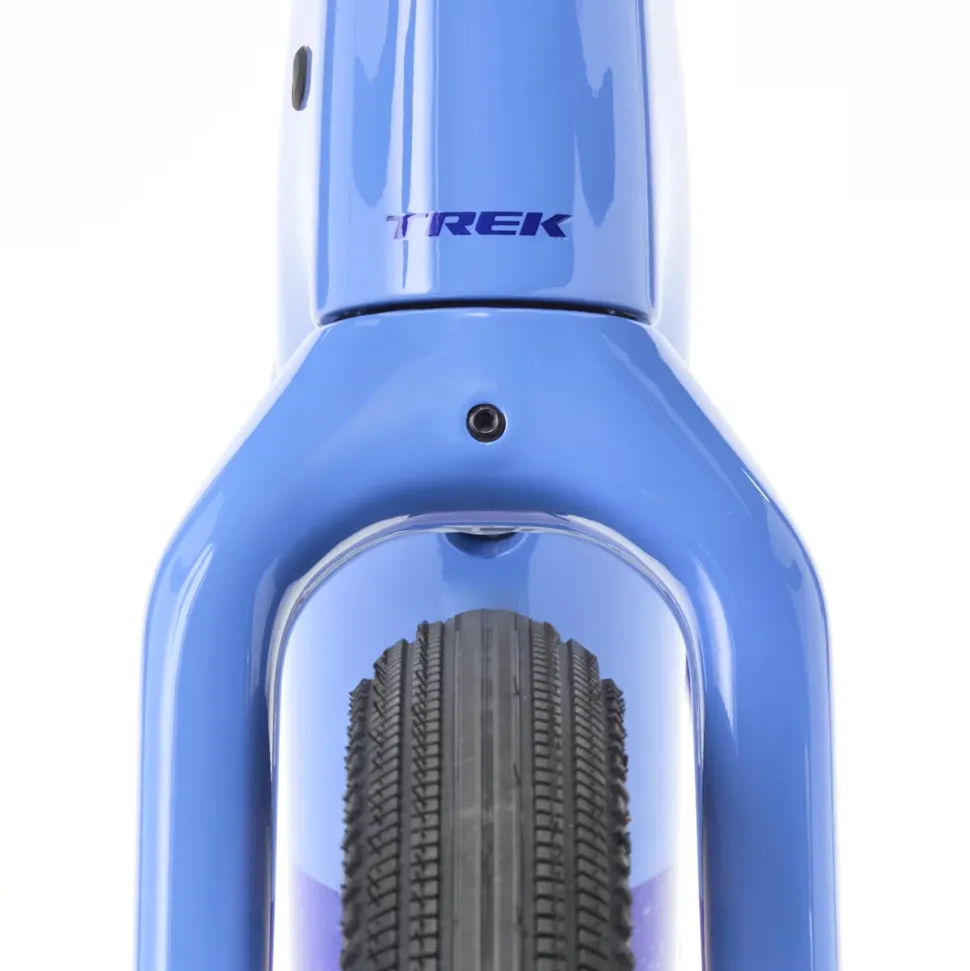

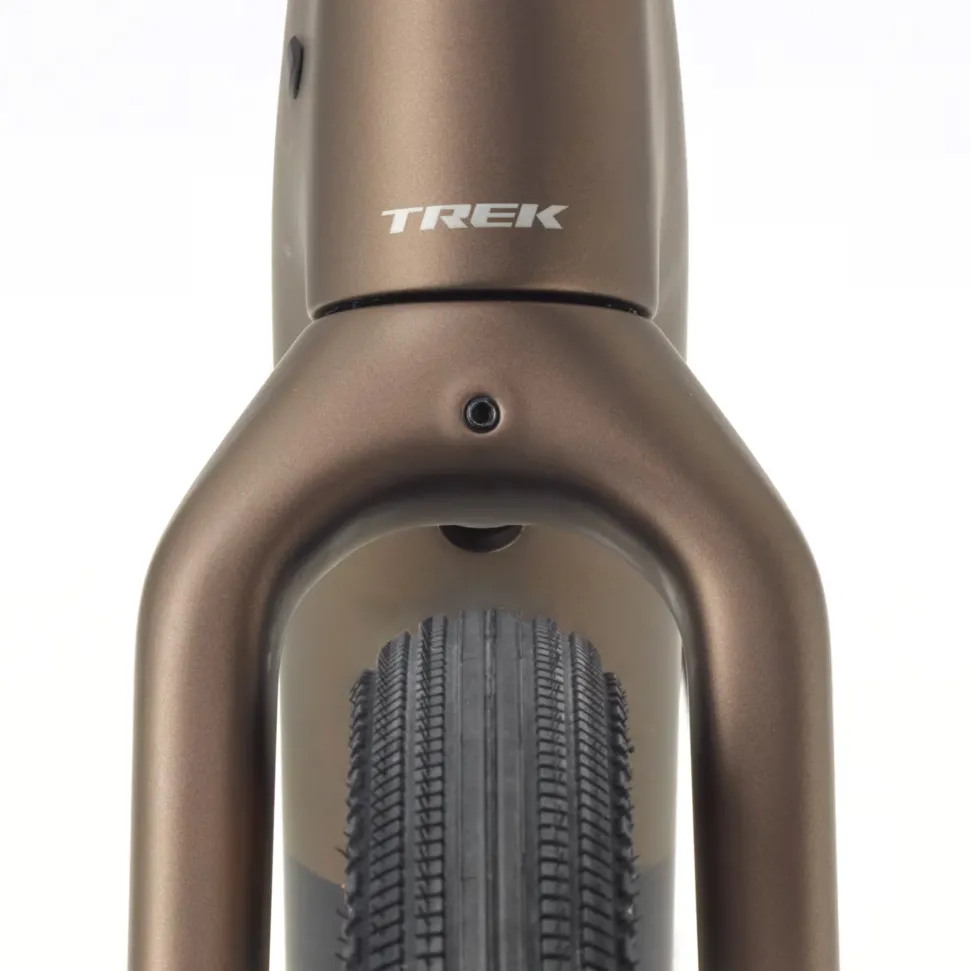

Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12×100 mm thru axle
Max compatible fork travel	40 mm (XS
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
Battery	TQ 360Wh
Charger	TQ 4A charger
Computer	TQ LED display with Bluetooth & ANT+ connectivity

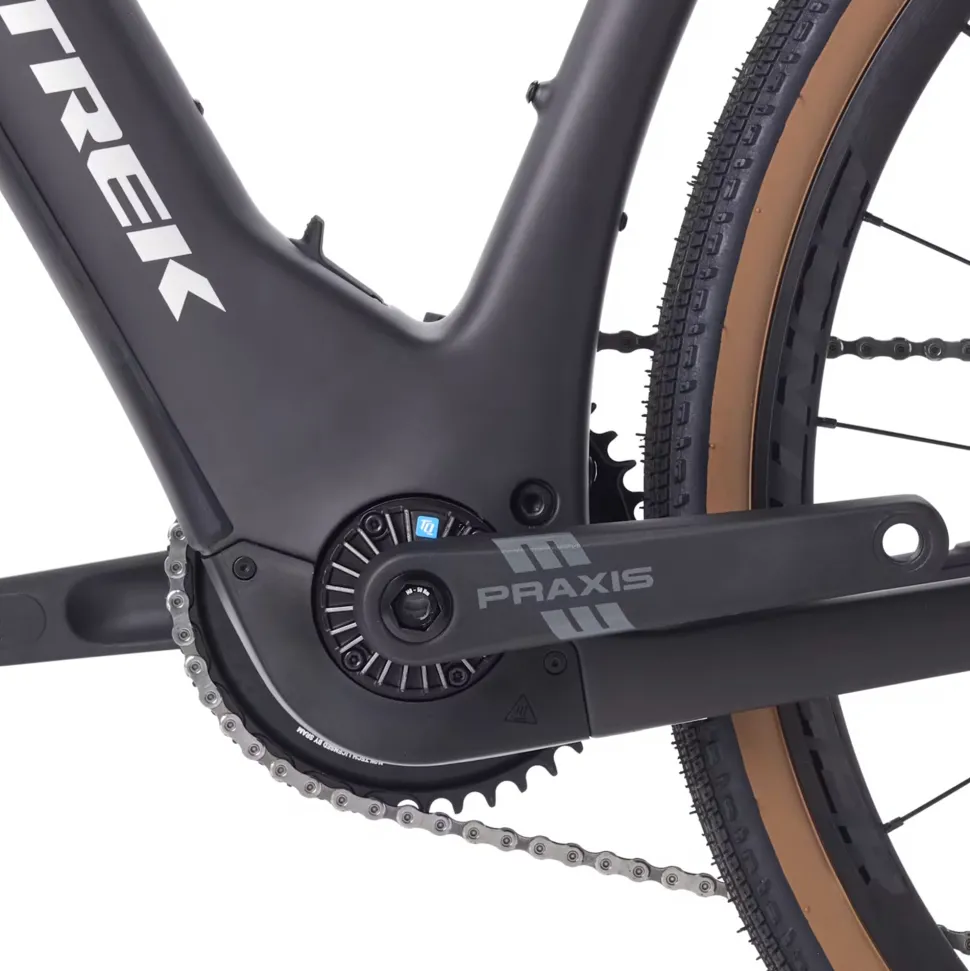

Motor	TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Shifter	Shimano GRX RX820, 12-speed
Rear derailleur	Shimano GRX RX822, 36T max cog
Crank
Size – XS, S	Praxis Alloy, 165 mm length
Size – M, ML	Praxis Alloy, 170 mm length
Size – L, XL	Praxis Alloy, 172.5 mm length
Cassette	Shimano XT M8200, 10-51, 12-speed
Chain	Shimano XT M8100, 12-speed
Max chainring size	1x
Wheel front	Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Tyre	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Max tyre size	50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle	Verse Short Comp, steel rails, 145 mm width
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

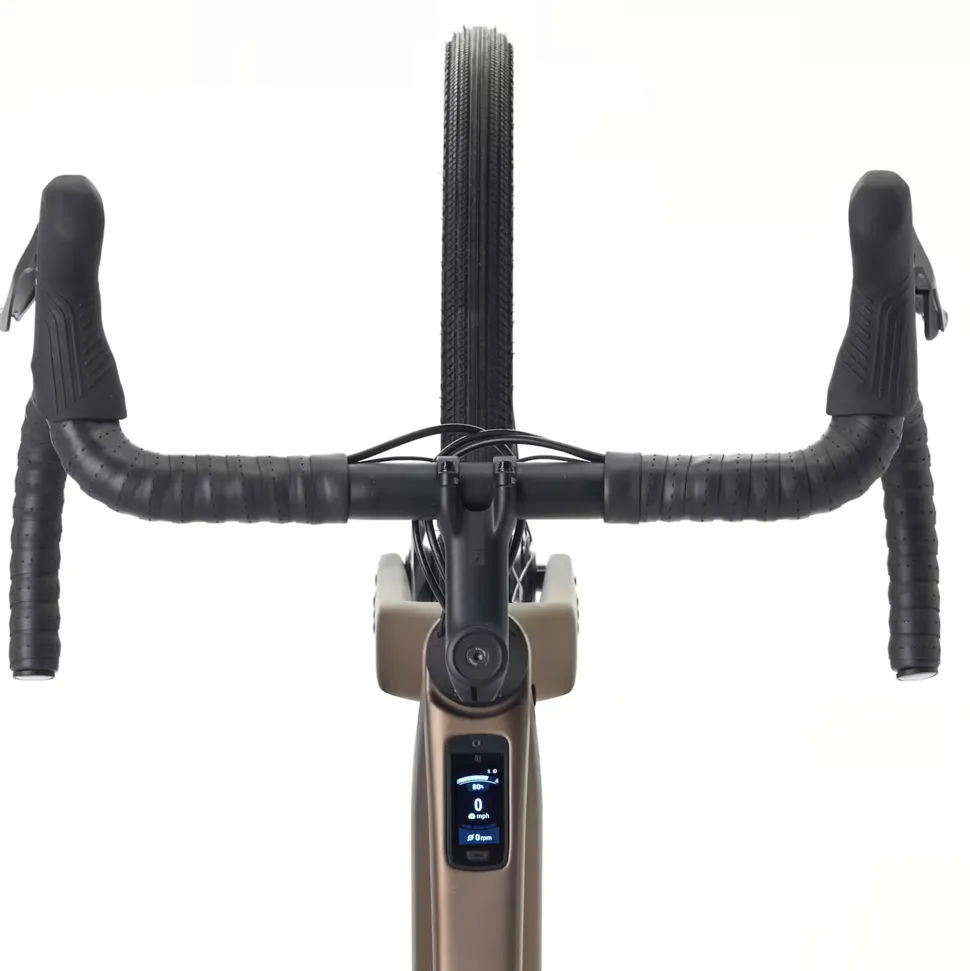

Handlebar
Size – XS, S	Bontrager Elite Gravel, alloy, 40 cm width
Size – M, ML	Bontrager Elite Gravel, alloy, 42 cm width
Size – L	Bontrager Elite Gravel, alloy, 44 cm width
Size – XL	Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape	Bontrager Supertack Perf tape
Stem
Size – XS	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size – S, M	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size – ML, L	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size – XL	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor	Shimano CL800, CentreLock, 160 mm
Brake lever	Shimano GRX RX820, 12-speed

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.
