Checkpoint+ SL 7 AXS Electric Gravel Bike

Checkpoint+ SL 7 AXS Electric Gravel Bike

Original price was: 6 658,77 £.Current price is: 93,67 £.

Colour

Clear

TrekCheckpoint+ SL 7 AXS Electric Gravel Bike

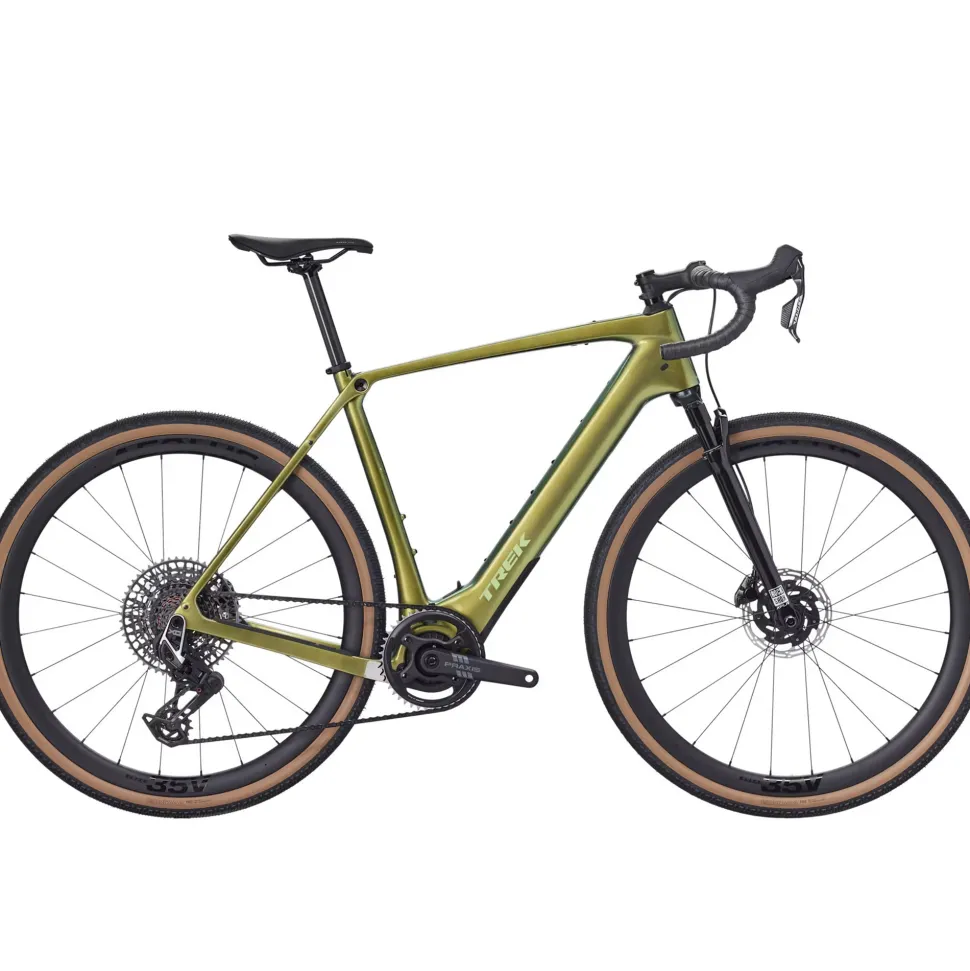

The Trek Checkpoint+ SL 7 AXS Electric Gravel Bike is a high-performance carbon e-gravel bike built for your most ambitious off-road adventures. Its lightweight OCLV Carbon frame is paired with the smooth, natural-feeling boost of the TQ HPR60 motor, helping you conquer longer distances and steeper climbs with ease.

Trek’s smooth performance

A 40 mm RockShox Rudy XPLR suspension fork enhances control and comfort over rough terrain, while the SRAM Force AXS E1 13-speed wireless drivetrain ensures precise, effortless shifting. Bontrager Aeolus Elite 35V OCLV Carbon wheels and a carbon seatpost reduce road buzz and help keep the overall weight low, making this an ideal companion for riders pushing the boundaries of gravel exploration.

Technical Specification

Frame	500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142×12 mm chamfered thru axle

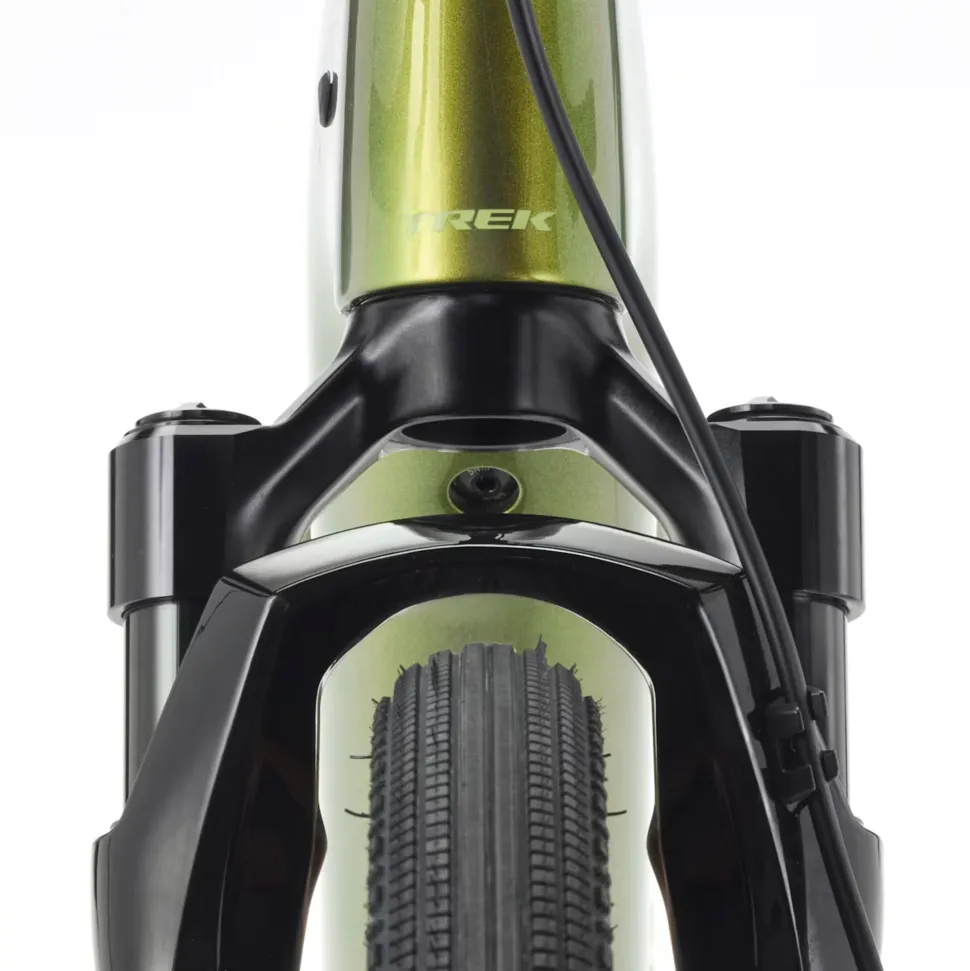

Fork	RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12×100 mm thru axle, 40 mm travel
Max compatible fork travel	40 mm (XS
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
Battery	TQ 360Wh
Charger	TQ 4A charger
Controller	TQ color LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Rear derailleur	SRAM X0 Eagle AXS, T-Type
Crank
Size – S	Praxis Alloy, 165 mm length
Size – M, ML	Praxis Alloy, 170 mm length
Size – L, XL	Praxis Alloy, 172.5 mm length
Cassette	SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain	SRAM XO Eagle, T-Type, 12-speed
Max chainring size	1x
Wheel front	Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100×12 mm thru axle
Wheel rear	Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142×12 mm thru axle
Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Tyre	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle	Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar
Size – S	Bontrager Pro Gravel, 40 cm width
Size – M, ML	Bontrager Pro Gravel, 42 cm width
Size – L	Bontrager Pro Gravel, 44 cm width
Size – XL	Bontrager Pro Gravel, 46 cm width
Handlebar tape	Bontrager Supertack Perf tape
Stem
Size – S, M	Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size – ML, L	Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size – XL	Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.
